Realtime Nodes (WebSocket, Socket.IO, MQTT)

Connect, Send, and Receive nodes for all three realtime protocols.

Three protocols , WebSocket, Socket.IO, and MQTT , each with the same three roles: Connect, Send, and Receive. The fields differ per protocol, but the shape and how they chain together is identical across all nine.

Connect

Opens a persistent connection for other nodes to use. Output: a connection port that Send/Receive nodes plug into.

Protocol	Fields
WebSocket	Endpoint
Socket.IO	Endpoint, Namespace (default `/`), Path (default `/socket.io/`), Auth (JSON)
MQTT	Broker, Client ID, Username, Password, Subscribe topics (comma-separated)

Headers are available for WebSocket and Socket.IO connections (added via the ⋯ menu → Add Header) , MQTT has no header concept, so that option doesn’t appear on an MQTT Connect node.

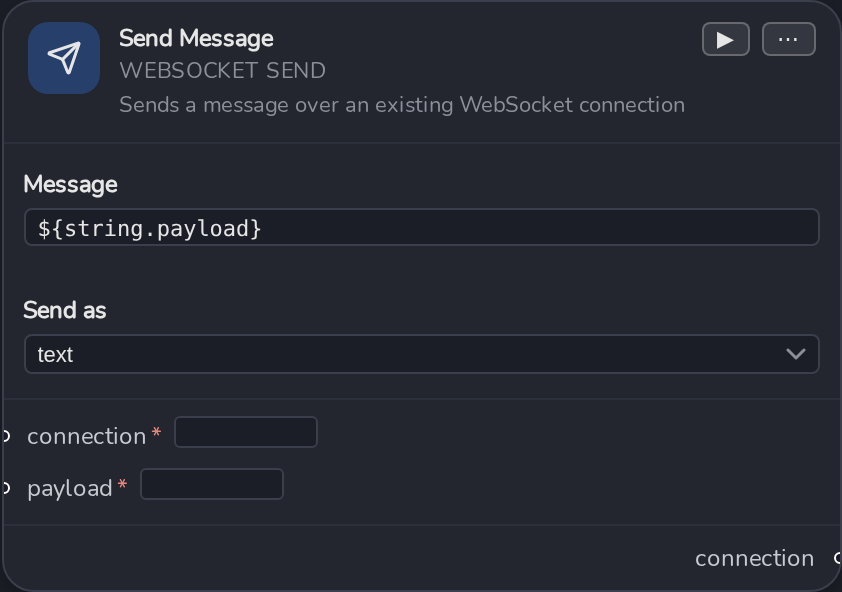

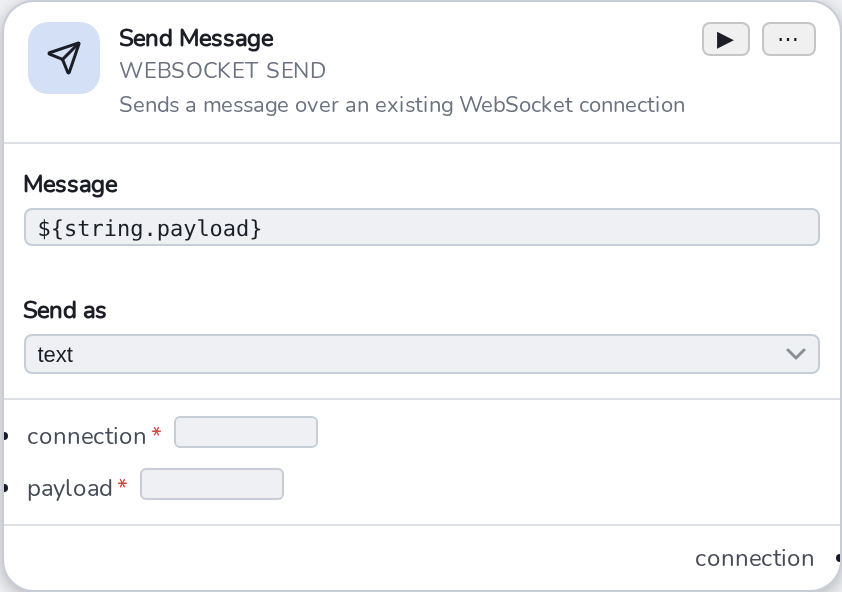

Send

Sends a message over an existing connection.

Protocol	Fields
WebSocket	Message, “Send as” (`text` \| `binary`)
Socket.IO	Event, Namespace, Message (JSON)
MQTT	Topic, Message, QoS (`0`\|`1`\|`2`), Retained (`false`\|`true`)

Every Send node has a required connection input port. That port’s id is deliberately the same one Connect outputs and Receive also exposes, so Send/Receive nodes can be chained one after another off a single Connect without renaming anything.

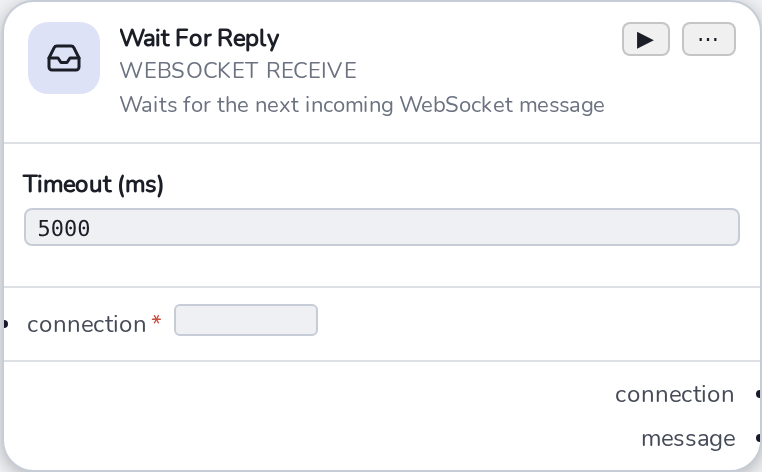

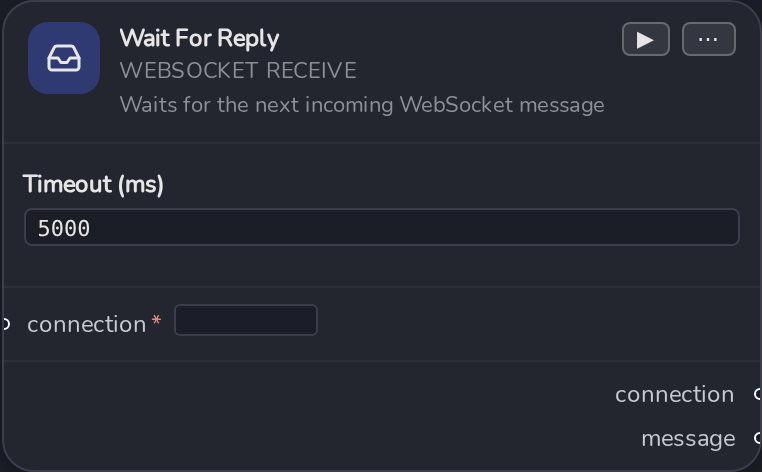

Receive

Waits for the next incoming message on a connection.

Protocol	Fields
WebSocket	Timeout (ms)
Socket.IO	Event, Namespace, Timeout (ms)
MQTT	Topic, QoS, Timeout (ms)

Receive has a required connection input, and two outputs: connection (pass it on to the next node) and message (the received payload). message holds a steady pulse rather than a one-shot flash, like the other envelope-style outputs , see Running Flows.

Tip

A typical realtime flow is Connect → Send → Receive, all wired through the same connection port , connect once, then send/receive as many times as the flow needs, chaining each node’s connection output into the next node’s connection input.
